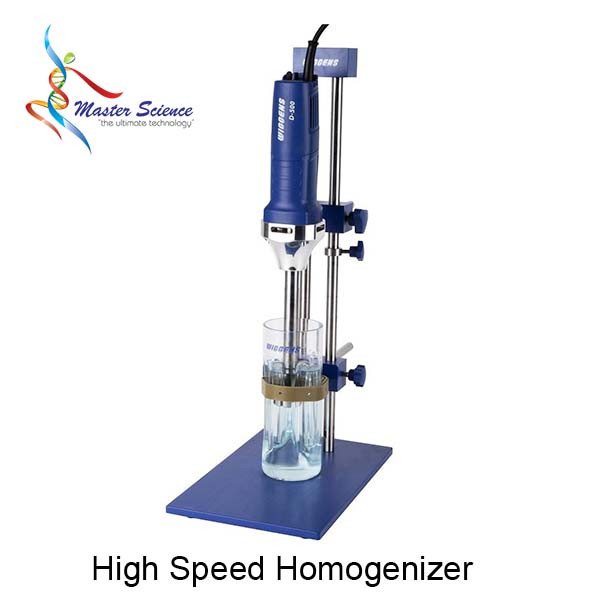

High-Speed Homogenizer
Model: D-500 (made from Wiggnes)
The D-500 High-Speed Homogenizer is an efficient and versatile tool designed for homogenizing, emulsifying, and suspending applications. Its compact design, high-speed capabilities, and ease of handling make it an excellent choice for laboratories and research facilities.
Key Features
- Continuously
Adjustable Speeds: Ensures better control and
precise results.
- Lightweight
and Compact Design: Enhances ease of handling and
operation.
- Triple
Safety Mechanism: Includes overload protection, smooth start
to prevent jerky operation, and a safety switch for user protection.
- High-Quality
Dispersing Tools: Made from SS 316L steel, providing
excellent corrosion resistance.
- Quick-Change
Dispersing Tools: Reduces preparation time with a simple
tool-switching mechanism.
- Handles
High Viscosities: Capable of processing materials up to 10,000 cps viscosity.
- Feedback-Controlled
Speed:
Maintains constant motor speed even under changing loads.
- Cost-Effective Solution: A high-quality laboratory dispersing unit offered at a competitive price.
Specifications
|
Specification |
Details |
|
Model |
D-500 |
|
Speed
Setting |
Knob |
|
Speed
Display |
Scale |
|
Process
Range (H2O) |
10~40,000
mL |
|
Speed
(Zero-Load) |
10,000~30,000
rpm |
|
Applicable
Aggregates |
Ø4~Ø23
mm |
|
Viscosity
Capability |
Up
to 10,000 cps |
|
Noise
Level |
72
dB (at 30,000 rpm) |
|
Motor
Type |
AC |
|
Input
/ Output Power |
500
W |
|
Supply
Voltage |
220V
/ 50~60Hz |
|
Relative
Humidity (Max.) |
80%
RH |
|
Operating
Temperature |
0~40°C |
|
IP
Code |
IP20 |
|
Dimensions
(Drive) |
70
× 70 × 255 mm |
|
Weight
(Drive) |
1.3
kg |
Standard Set Package
The recommended set
includes:
- D-500
Homogenizer
- SS20CSR20
Dispersing Shaft
- WF11-D
Stand for D-500 Homogenizer
- Positioning
Ring
- Fastening Belt
Applications
Ideal for:
- Homogenizing
- Emulsifying
- Suspending
The D-500 comes with a
broad spectrum of dispersing tools to cater to various laboratory needs.
