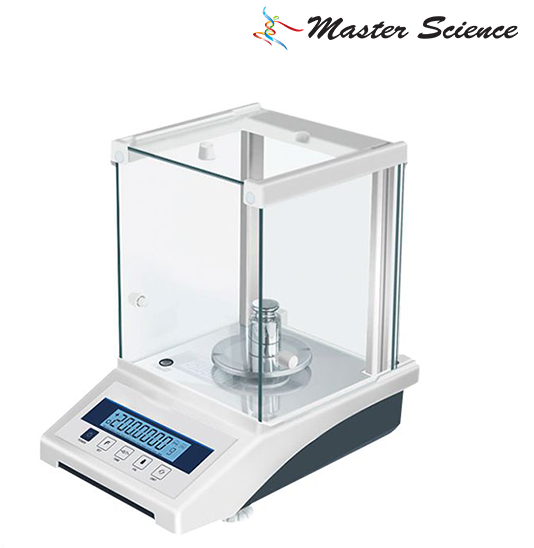

Analytical balances are highly sensitive laboratory instruments designed for precise measurements, often utilized in quantitative chemical analysis. These balances can measure small masses in the sub-milligram range with exceptional accuracy, offering readability up to 0.0001g.

Features of Analytical Balances
External Calibration
Electromagnetic Force Sensor
LCD Display: White backlight with black front
Functionalities: Tare, Counting, Unit Conversion
Adjustments: Sensitivity, Speed, Percentage
Density Function
Additional Functions: Accumulation, Peak Hold, Upper and Lower Set Points
Weighing Modes: Dynamic, Net and Gross, Clock Function (optional)
Print Function: Baud rate setting, Continuous or Press Communication
Calibration Time Setting
Alarms: Overload, Fault, Level Indicator
Optional Accessories: Density Kit (for solids/liquids), Printer

Specifications

Model: MSBAE1004SWISS
Capacity: 100g
Resolution: 0.0001g
Minimum Weighing: 0.0004g
Stable Time: ≤3 seconds
Display: LCD (white backlight with black font)
Pan Size: Φ80mm (Standard), Φ90mm (Optional)
Operating Temperature: 5-35°C
Repeatability: ±0.0002g
Linearity: ±0.0003g
Dimensions: 300 x 200 x 295 mm
Draft Shield Size: 180 x 175 x 200 mm
LCD Size: 96 x 24 mm
Calibration: External Calibration
Options: RS232C (Standard), Printer (Optional)
Packing Size: 425 x 320 x 415 mm
Gross Weight: 8.0 kg

Analytical balances are integral in settings requiring high precision, ensuring reliable and repeatable measurements for scientific research and industrial applications.
